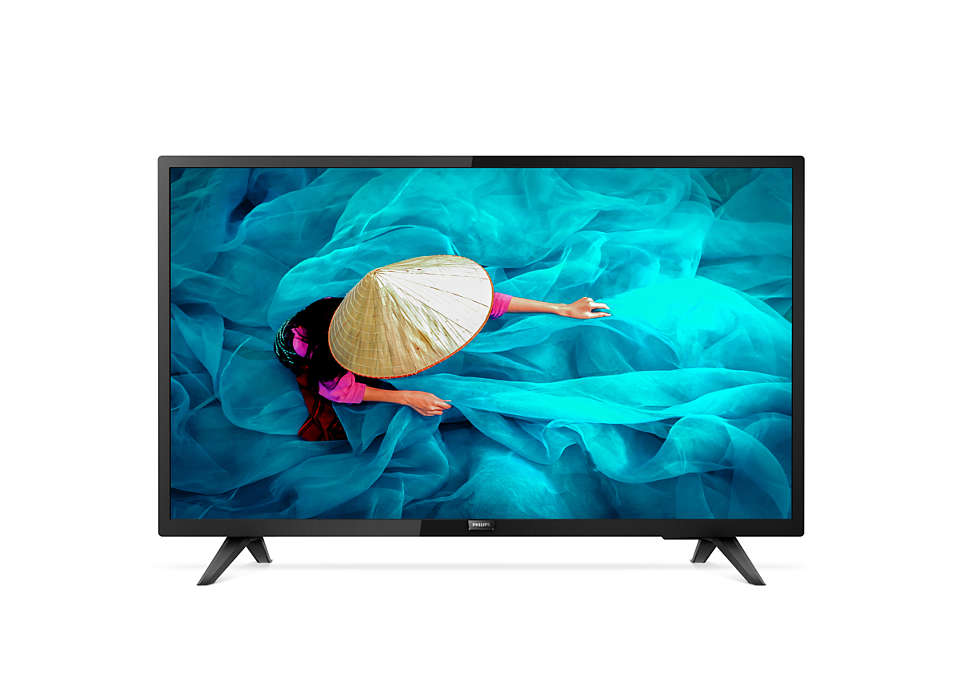

Professional TV 43" MediaSuite 43HFL5014/12

Display

LED Full HD

Diagonal screen size (metric)

108  cm

Diagonal screen size (inch)

43  inch

Panel resolution

1920x1080p

Brightness

250  cd/m²

Viewing angle

178º (H) / 178º (V)

Audio

Sound output Power

20 (2×10)  W

Speakers

• 2.0
• Down Firing

Bathroom speaker out

1.5W Mono 8Ohm

Sound Features

• DTS-HD
• Dolby Atmos Compatible
• Dolby MS12D
• AC-4
• DTS Studio Sound

Design

Colour

Black

Android

Memory size

16GB

OS

Android™ 7.0 (Nougat)

Tuner/Reception/Transmission

Digital TV

• DVB-T/T2/C
• HEVC FHD (up to 1080p60)

Analog TV

PAL

IP Playback

• Multicast
• Unicast
• OTT App Channels

Wireless Connectivity

Wireless LAN

• 802.11 ac
• Wifi-Direct

Connectivity Rear

Digital Audio out

Optical

Ethernet (LAN)

RJ-45

Antenna

IEC-75

External power

12V, max 1.5A

External Control

RJ-48

HDMI2

HDMI 1.4

USB2

USB 2.0

Bathroom speaker out

Mini-Jack

Connectivity Side

Common Interface Slot

CI+ 1.3.2

USB1

USB 3.0

HDMI1

HDMI 1.4

Headphone out

Mini-Jack

Connectivity Enhancements

HDMI

• ARC (all ports)
• MHL 2.0 (HDMI1)

EasyLink (HDMI CEC)

• One touch play
• System Standby
• RC pass through
• system audio control

LAN

Wake up on LAN

RJ48

• IR-In/Out
• Serial Xpress interface

Features

Digital services

• 8d EPG
• Now&Next
• MHEG
• Teletext
• HbbTV
• Subtitles

Ease of use

• Picture Style
• Sound Style

Local control

Joystick

Hospitality Features

Sharing

• Chromecast built-in
• Secure Sharing
• Network-managed Sharing

Apps

• Google Play Store
• Cloud-based Apps
• AppControl

Your brand

• Customizable Home Screen
• Customizable Welcome App
• Location Name (Geonames ID)
• CMND&Create
• Custom Dashboard (HTML&APK)

CMND&Control

• Off-Line Channel Editor
• Off-Line Settings Editor
• Remote Management over IP/RF
• CMND&Create
• TV Group management

CMND&Check-In

• Guest Name
• Guest Language
• Messages
• Bill on TV
• Express Checkout

Integrated services

5 Day Weather Forecast

Languages

Guest language control

Clock

• Clock in Standby Mode
• On-screen Clock
• Optional External Clock

Timer

• Sleep Timer
• Wake Up Alarm
• Wake Up On Channel
• Wake up Sounds

Channels

• Combined List
• Themed lists

Remote Control

• Low Battery Detection
• RC Battery Door Lock
• Glow-in-the-Dark Clock button

Control

• JEDI Native Android TV Control
• JSON API for TV Control-JAPIT
• Serial Xpress Protocol

Cloning and Firmware update

• Instant Initial Cloning
• Via USB/RF/IP

Interactive DRM

• VSecure
• Playready Smoothstreaming
• Securemedia

Power control

• Quick Start Mode
• Auto Power ON
• WoLAN
• WoWLAN

Switch On control

• Channel
• Feature
• Picture Format
• Volume
• Picture Style

Revenue generation

MyChoice

Hotel mode

• Joystick Control Lock
• Menu lock
• Installation Menu Lock
• Volume limitation

Prison mode

• high security mode
• TXT/MHEG/USB/EPG/Subtitle Lock

Healthcare features

Control

• Multi-Remote Control
• Healthcare RC compatible
• Nurse call system compatible

Convenience

• Headphone out
• Independent main speaker mute

Safety

• Double isolation class II
• Flame retardant

Multimedia

Video playback supported

• Formats: H.264/MPEG4 AVC
• MPEG1
• MPEG2
• MPEG4
• WMV9/VC1
• HEVC
• Containers: AVI, MKV
• VP9

Subtitle formats supported

• SRT
• SMI
• TXT

Music formats supported

• MP3
• AAC
• WAV
• WMA (v2 up to v9.2)
• WMA-PRO (v9 and v10)

Picture formats supported

• JPG
• PNG
• BMP
• GIF

Supp. Video Resolution on USB

up to 1920x1080p@60Hz

Accessories

Included

• Edge Stand
• Remote Control 22AV1905A/12
• 2xAAA Batteries
• Power Cord
• Warranty Leaflet
• Legal and Safety brochure

Optional

• Remote Control 22AV1904A/12
• Easy RC 22AV1601B/12
• Healthcare RC 22AV1604B/12
• External Clock 22AV1860A/12
• DOCSIS Cable Modem 22AV1970A
• Setup RC 22AV9574A/12

Power

Mains power

AC 220-240V; 50-60Hz

Energy Label Class

A+

Eu Energy Label power

48  W

Annual energy consumption

71  kW·h

Standby power consumption

<0.3W

Power Saving Features

Eco mode

Ambient temperature

0 °C to 40 °C

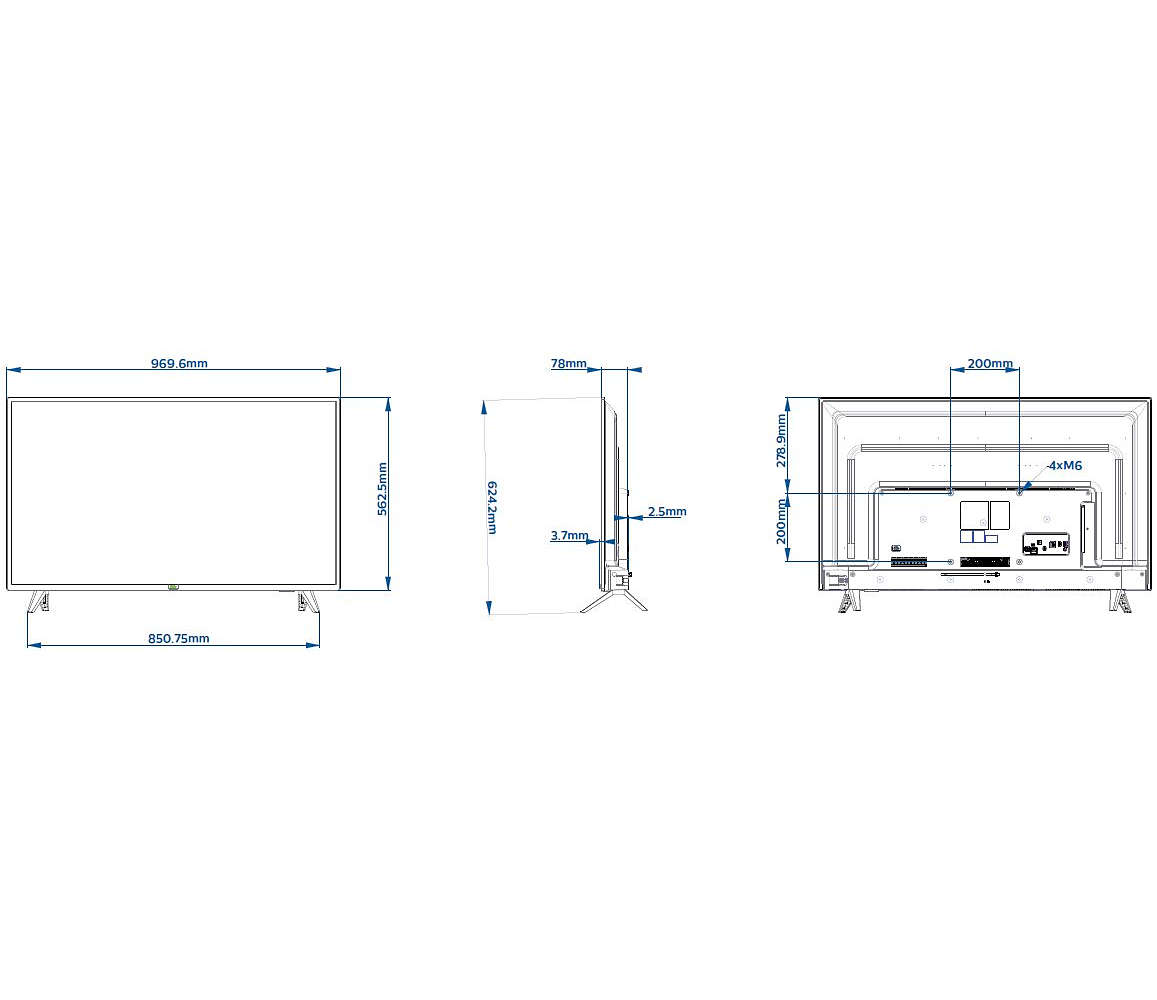

Dimensions

Set Width

970  mm

Set Height

562,5  mm

Set Depth

78/80,5  mm

Set width (with stand)

970  mm

Set height (with stand)

624  mm

Set depth (with stand)

194  mm

Product weight

7.2  kg

Product weight (+stand)

7.3  kg

VESA wall mount compatible

• 200 x 200 mm
• M6
